Flush head dynabolt
Post with Plates welded for free Standing
gerry
Gate post with welded plates on the bottom
Free Standing Post
Part
Number
Gate Motor mounting brackets can also be welded on,
but an additional charge is applied.
We can deliver 1 or 100 posts,
Australia wide!

delivery of post
Hint
for in-ground posts
Gate posts should be at least 1/3rd in the ground.
To determine the correct length of the gate post, divide the height of the gate into 3, and then add it to the result.
Example:
1650mm divided by 3 = 550, at which you add the original 1650mm, resulting a gate post size of 2200mm.
Base Plate on a post

post end caps weld on

Just cut 50x50x1.6mm hollow tube to the length you require then knock in over the neck for a tight fit - No welding required.

weld cap plate on a post
arrow1156
free standing post
There are 3 types of steel gate posts:
In-ground gate posts
Free Standing gate posts
Wall gate posts
In-ground Post
Tube
Size
Wall
Thickness
mm
Price
Per Metre
Steel Caps on a gate post
Steel Post per Metre
Galvanized
Price does not include Cap or Plates
All Price includes GST
202012g 20x20 1.2 8 $2.32 $14.20
202016g 20x20 1.6 8 $2.94 $17.25
252512g 25x25 1.2 8 $3.16 $17.16
252516g 25x25 1.6 8 $3.82 $22.63
303016g 30x30 1.6 8 $4.55 $26.64
404016g 40x40 1.6 8 $6.38 $34.45
404020g 40x40 2.0 8 $7.72 $47.52
505016g 50x50 1.6 8 $8.10 $41.85
505020g 50x50 2.0 8 $9.95 $59.45
505025g 50x50 2.5 8 $11.85 $73.95
505030g 50x50 3.0 8 $15.13 $86.96
656516g 65x65 1.6 8 $10.85 $63.54
656520g 65x65 2.0 8 $13.15 $79.24
656525g 65x65 2.5 8 $16.25 $97.95
757520g 75x75 2.0 8 $14.95 $91.83
757525g 75x75 2.5 8 $18.95 $113.95
757530g 75x75 3.0 8 $23.42 $135.84
909020g 90x90 2.0 8 $21.23 $109.65
10010020g 100x100 2.0 8 $24.65 $114.45
10010025g 100x100 2.5 8 $25.88 $154.45
10010030g 100x100 3.0 8 $29.95 $183.85
TIP... (Want a better Anchor Bolt)
There's nothing worst attaching a post to the wall and the thread has run out (B) and you are left with a dynabolt spinning and not grabbing, We have found a dynabolt (A) that pulls right up and doesn't leave the thread sticking out
(A)
Flush head Dynabolt
X
Flush Head Dynabolt - 12mm x 65mm lenght
pack of 10 pcs  P/N FS434 -  $ 16.50
Base Plate Covers
Base Post Covers - Pressed Steel - Zinc Plated
Base plate cover 135mm square
Side view of post cover 50mm
50x50
inside
arrow9
135 mm
arrow8
Base Post Covers 50mm  - P/N SE704 -  $4.60each
Weight = 185 g
arrow101
arrow100
135 mm
Base Plates Covers 40mm
Fence Base Covers 40x40
Base Post Covers 40mm  - P/N SE700  - $3.80 each
Weight = 125 g
40x40
inside
arrow10
105 mm
arrow11
arrow14
105 mm
arrow12
47 mm
Steel Base Plates For Post
Post Base plate 150x150x8
Base Plates Covers 40mm
Post cover 65x65mm
50x50
inside
arrow7
105 mm
arrow6
Base Post Covers 50mm
P/N SE702  - $3.80 each
Weight = 95 g
arrow4
135 mm
65x65
inside
arrow5
Fence Post Base Cover give that finished look, very easy to install. No more unsightly screw heads.
Gal Steel Post plates to weld on
to Fit 100x100  tube
P/N SE812   weight =215g
$ 4.50 each
Post cover 75x75mm
Base Post Covers 75mm
P/N SE708  - $5.60 each
Weight = 135 g
arrow2
arrow1
135 mm
75x75
inside
cover powder coated
Length
(M)
382516g 38x25 1.6 8 $4.82 $28.85
502516g 50x25 1.6 8 $5.95 $35.11
755020g 75x50 2.0 8 $12.24 $75.54
804016g 80x40 1.6 8 $11.75 $61.52
804020g 80x40 2.0 8 $13.65 $88.85
1005020g 100x50 2.0 8 $14.85 $89.84
1005025g 100x50 2.5 8 $18.84 $113.65
1005030g 100x50 3.0 8 $21.68 $135.32
1505020g 150x50 2.0 8 $23.42 $134.63
1505025g 150x50 2.5 8 $28.15 $142.58
1505030g 150x50 3.0 8 $30.26 $183.85
501010g 50x10 1.0 7.32 $5.25 $23.53
751610g 75x16 1.0 7.32 $6.82 $38.23
Gal Steel Rectangle Hollow Section
Gal Steel Square Hollow Section
Price
Per Length
post insert base with post
post base inserts
50x50mm Post Base Inserts (Aluminum)

Post Base Inserts for 50x50mm posts
P/N SE206  - $10.50 each
arrow301
arrow305
100mm
arrow306
100mm
arrow300
arrow302
65mm
arrow303
46mm
arrow304
47mm
line2
line5
line6
line9
line11
line13
line12

Steel Fence Post made and Cut to Order

Post Base Inserts for 65x65mm posts
P/N SE208  - $13.50 each
135 mm
105 mm
Post Cover 65x153
65x65
inside
arrow400
153 mm
arrow406
153 mm
arrow404
32 mm
Base Post Covers 65mm
Black Only
P/N SE710  - $7.50 each
Weight = 135 g
enough room under the cover for dynabolts
135 mm
105 mm
135 mm

Steel Gate Post & Plates

More information ET135
Post Cover 65x150
harry
Plastic caps hides the holes required to attached the post to walls
Wall Post
bolts to brick walls
Gate Post with a 32mm hole
Welded steel tops are also available, at any size, for only $10 per post.
Steel post with Steel Caps Welded to the top
Round caps for dynabolt
holes
50 mm

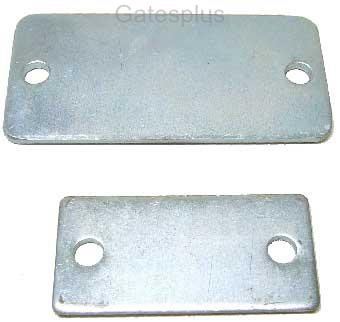

Steel Base Plates Zinc  For Welding onto the base of post
Base Post Covers 65mm
P/N SE706  - $4.60 each
Weight = 135 g
9mm Holes
95mm in height
arrow405
22 mm
