m-metal lock fitted into a black gate frame

keep installed in a post for a h metal lock

Insert lock with 100 percent stainless steel mechanism. The massive stainless steel hook and adjustable latch bolt makes this a one of the secure locks in the market place today. The combination of the hook (dead bolt/night bolt) with the corresponding keep provides a secure anchoring of your gate. These locks can be used on metal or aluminium gates or with our fully prepared steel profiles.

The smallest size steel the H-Metal locks fits into is 65 X 35
mm but I like to work with 65x50 steel mainly the 50mm wide gives me more choices.

Locinox H Metal lock fitted into a gate frame

Keeper for the H-Metal lock
Sold separately

FK070 - $34.25

Keeper for the H-Metal lock
Sold separately

H Metal Lock Kit- FK509 - $195.20
included with the Mortise lock
Handle Set
Key barrel
Cover plate
Keeper
These can be purchased separately

Download the Dimensions as a PDF
Dimensions of the H Metal Lock

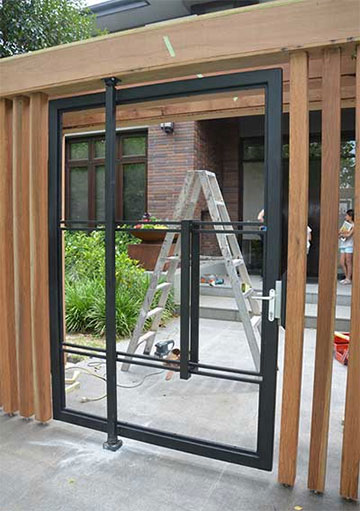

Locinox H Metal lock installed in a Vertical Bar Gate

Installation instructions
For the H Metal Lock

instruction how to fit a locinox gate lock

[] Easy left or right changing of the self-latching daybolt
[] Key-operated self-latching bolt
[] Adjustment of the latch bolt up to 20 mm continuous without dismounting the lock
[] Mechanism, hook, frontplate, latchbolt: stainless steel
[] Handles and cylinder to be ordered separately
[] Stainless steel hook for secure anchoring
[] Throw of the hook: 33 mm
[] Center-distance cylinder <=> handles => 92 mm
[] Hook in combination with the Locinox keep provides a secure anchoring
[] With coverplate for lockmechanism against dirt penetration
[] Compatible with 54 mm, 60 mm and 80 mm Europrofile cylinder
[] Cover shield for handle & cylinder holes to be ordered separately

[] Adjustable for profiles: 40 - 60 mm
[] Innovative mounting: Quick-Fix
[] Anchoring plate for hook
[] Stop plate is available in different RAL-colours Black or Alum.
[] Easy left or right changing

Keeper for the H-Metal lock
Sold separately

FK070 - $34.25

H Metal gate lock installed in a fancy gate

H-metal lock and keeper installed on this gate, just before the gate was about to be cladded with a metal sheet.

H Metal lock installed into a gate frame

Using the Locinox Hmetal Lock in a 50x50mm frame but I could not intrude on the infill so I extened the lock in a Lock Box got the look I was after great lock in a 50x50 gate frame.

Lock Box for H-Metal lock
Material - Steel
Sold separately

Part No. FK072 - $48.50

H Metal Lock inside the lockbox to show the fit and how you might weld it into a frame.
Lock and Lockbox sold separately

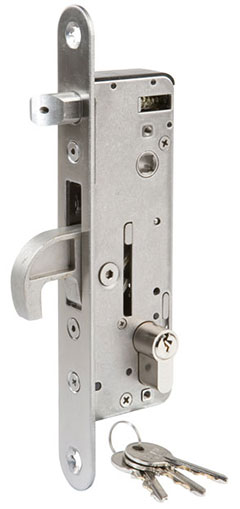

H Metal lock from Locinox

H-Metal In frame HI Security Lock

This shows how versatile this lock is, I made a mounting bracket out of 50x25 tapper each end and screwed it onto the timber which houses the keeper. It also shows the keeper stop making it impossible to crowbar open the lock. If you could get pass the keeper then you need to deal with the big hook - making it one of the safest locks in the world.

locinox H Metal installed in a wire gate
