underground gate motor side view
underground gate motor with arm
Display box
Max
200mm
Details
- Safe and reliable electro-mechanical, mounted engine.
- Inside, bearings, gear ratio.
- Long-lasting, high quality.
- Universal mount right or left side, both side are independent.
- Flats and family houses can use.
- Strong mechanical components.
- Galvanized, stainless steel or Stainless power box under the floor-mounting (optional).
- Key clutch mechanism.
- Simple deployability.
- Torque: 380N.
- Maximum kapusúly: 250kg.
- 80% work.
- IP68 protection ratings.
- Dimensions: 430mm L x 200mm W x 120mm H
- Weight: 15kg.
- Power supply: 24VDC.
- Current consumption: 1A.
- Power: 70W.
- Operating temperature: -25 ° C - +75 ° C - CE certification.
- The product complies with EN 13241-1, EN EN 12,453 and 12,455 standards.
- RoHS certificate.


Option 1.
Underground unit behind the gate
Centre of Pivot of gate motor inline with the centre of the gate pivot point (hinge)
Arm is at a 45 Deg angle to the channel
Option 2.
Underground unit behind the gate
Centre of Pivot of gate motor offset from the centre of the gate pivot point (hinge) by up to 200mm
Arm is at a 45 Deg angle to the channel
Option 3.
Underground unit below the gate
Centre of Pivot of gate motor offset from the centre of the gate pivot point (hinge) by up to 200mm
Arm is at a 45 Deg angle to the channel
arrow4

Under Ground Gate Motors

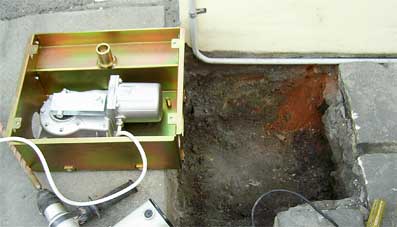

Above - The underground motor is installed and is waiting for the swing gate to be installed as well.

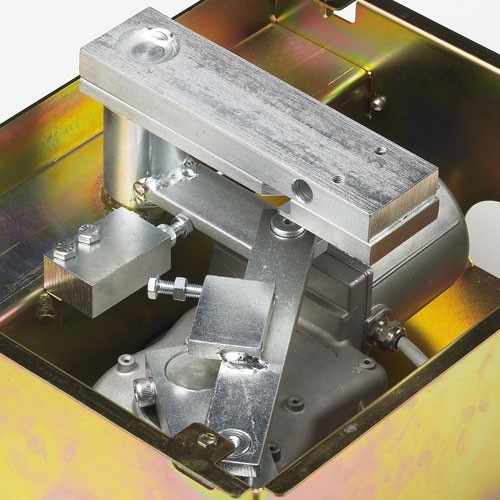

underground gate motor arm
Looking underneath the slide rail
Max
200mm
arrow10
  600mm
  40x40mm
arrow13
arrow11
  120mm
arrow9
  120mm
arrow12
  75mm

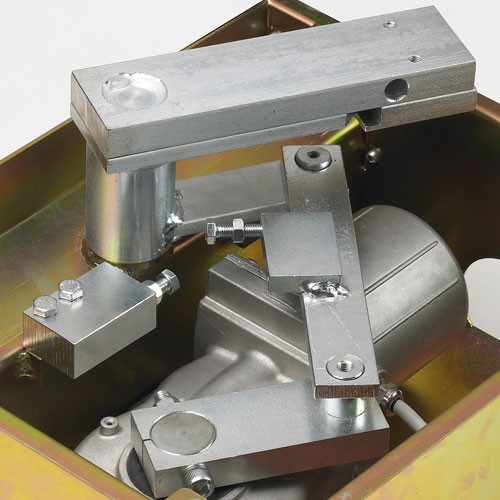

underground gate motor unit
arrow1
430mm
arrow2
200mm
arrow3
120mm
underground electromecanical operator for swing gates. Only the best materials are used to create some of the smallest devices which are also water proof! These are suitable for any type of swing gate, and are designed to operate even under water!
These are not low voltage gate motors, and a 240V power outlet must be supplied close to the gate!
Specifications
Duty cycle - 100%
Power supply 240v AC
Rechargeable battery - 12v DC
Standby current consumption -15mAmp
Average power consumption - 1.5A
Power supply to accessories - 1 Amp
Over-current protection - 10A
Motor power - 18v DC to 24v DC
Noise Level <50dB
Working temperature -20 - +55 degrees
Thermal cut out 140 degrees
Opening/closing running time 16 seconds
IP rating - IP67
Gate size - 4.5m max
Gate weight - 400kg max
PE sensor power -12v DC, 0.5Amp
Receiver -Learning type
Remote control -4 Buttons rolling code 433.92mhz
Swing Gate Motors
Swing gate motors
Sliding gate motor
Sliding
Gate
Motor
Gate
Locks
Range of Gate Locks
Electro-magnetic
Lock
Electro-magnetic lock
  Related Products
600mm
Under Ground Gate Motor
Single Motor
with Control Board - 2 remotes
Part Number - MOT100 - Single Motor
$1080.00




UnderGround Gate Motor
Double Motors
with Control Board  - 2 Remotes

     Part Number - MOT104 - Double Motors
$1550.00
