Covered worm screw: BTA40 operators are telescopic operators with completely covered worm screw. This ensures maximum protection against external agents (water, dust, dirt, etc.) as well as a total protection for people, preventing any type of access to the moving parts.
Covered worm screw: BTA40 operators are telescopic operators with completely covered worm screw. This ensures maximum protection against external agents (water, dust, dirt, etc.) as well as a total protection for people, preventing any type of access to the moving parts.
Related Products
Product Details
The BTA40 Ultra is a 24v electromechanical operator equipped with a worm-drive, designed for single residences or apartment buildings. It is suitable for swing gate leafs up to 4 metres wide and weighing up to 500kg. The BTA40 Ultra is designed to be installed quickly and easily with a number of important features including a covered worm-drive, integrated stops, magnetic limit switches and a magnetic locking pin.
One Motor can handle a single gate up to 4 Metres (500kgs)
Two Motors handle a double gate totally up to 8 Metres.
Warranty - 24 Months
The BTA40 Ultra is a 24v electromechanical operator equipped with a worm-drive, designed for single residences or apartment buildings. It is suitable for swing gate leafs up to 4 metres wide and weighing up to 500kg. The BTA40 Ultra is designed to be installed quickly and easily with a number of important features including a covered worm-drive, integrated stops, magnetic limit switches and a magnetic locking pin.
One Motor can handle a single gate up to 4 Metres (500kgs)
Two Motors handle a double gate totally up to 8 Metres.
Warranty - 24 Months
| Code | BT A40 |
| ELECTRICAL DATA | |
| Power supply (Vac 50 Hz) | 230 |
| Absorbed current | 1.5 A |
| Power input | 40W |
| Performance data | |
| Speed (m/s) | 0.15 sec |
| Force (N) | 2000 |
| Useful rod strok | 355mm |
| Dimensional and General data | |
| Type of limit switch | Magnetic |
| Maximum angle | 126mm |
| Dimensions (mm) | 330x210x303 h |
| Weight (kg) | 8 |
24 Months Warranty
This video shows how to program your Keypad
Code - ET275
QBOTouch
$169.00
plus shipping
QBOTouch
$169.00
plus shipping
Wireless Keypad for BFT
Made in Italy
$1855.00 - Double Gate Kit - up to 8 Metres
Forward opening
Inward opening
Single gate opening
$1265.00 - Single Gate Kit - up to 4 Metres
Double Gate Motors - MOT310
Single Gate Motor
So easy to setup
Magnetic pin: an exclusive feature of BTA40 operators enabling quicker installation steps, making them easier and always ensuring correct rear locking of the operator
This unit requires 240V power outlet at the gate if you require long distance
Kit includes:
2 x BFT Kustos Linear Drive Motors

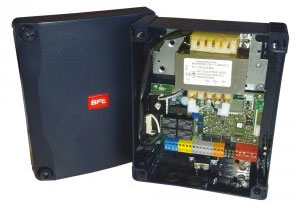

1 x Control Panel With 230v Power Lead
3 x BFT Mitto Remote Control Transmitters
Mounting Brackets.
2 x BFT Kustos Linear Drive Motors
1 x Control Panel With 230v Power Lead
3 x BFT Mitto Remote Control Transmitters
Mounting Brackets.
Kit includes:
1 x BFT Kustos Linear Drive Motors
1 x Control Panel With 230v Power Lead
3 x BFT Mitto Remote Control Transmitters
Mounting Brackets.
1 x BFT Kustos Linear Drive Motors
1 x Control Panel With 230v Power Lead
3 x BFT Mitto Remote Control Transmitters
Mounting Brackets.
BFT KUSTOS BT
Electromechanical automation systems for swing gates
