Mini-Multi Adjust, self-closing gate
hinges for round post & gate frames
TruClose Mini-Multi - Round
• For round gate frame and fence post
• Adjustable vertically & horizontally
• Adjustable self-closing tension
• Alignment legs for added strength and ease of installation
• Super-strong polymer construction and stainless steel components means no rust or corrosion
• Unique D&D-patented adjustment
TCAMA2RND
hinges for round post & gate frames
TruClose Mini-Multi - Round
• For round gate frame and fence post
• Adjustable vertically & horizontally
• Adjustable self-closing tension
• Alignment legs for added strength and ease of installation
• Super-strong polymer construction and stainless steel components means no rust or corrosion
• Unique D&D-patented adjustment
TCAMA2RND
$89.47 Pair P/N HN733
$89.47 Pair P/N HN734
TruClose Heavy-Duty hinges deliver dependable reliability for child safety gates and general-purpose gates around homes and yards, as well as for high-traffic gates. These hinges are ideal for retrofitting to existing gates as they will fit to gates gate gaps ranging from 6-25mm.
Each pair of hinges includes shims/adaptors to fit different post and gate diameters. D&D Technologies has been a leader in there field when it comes to round post self closing hinges.
Self Closing hinges for Round Post -
Post 50 & 73
Gate 50mm
upto - 60 Kgs
Post 50 & 73
Gate 50mm
upto - 60 Kgs
$77.43 Pair P/N HN705
Safety Cap for
HN735
$5.95 each P/N CP840
HN735
$5.95 each P/N CP840
Safety Cap for
HN736
$5.95 each P/N CP840
HN736
$5.95 each P/N CP840
Two piece Round pipe hinge for spring closer
65mm
80mm
100mm
25mm
25mm
25NB - 40NB
25NB - 50NB
25NB - 65NB
25NB - 80NB
25NB - 100NB
Spring closer for 25NB extra light round pipe
$43.50 plus shipping $12
HN815
$43.50 plus shipping $12
HN815
Two part Hinge
25nb - 40nb mm
HN050
$15.25 each
shipping $12
25nb - 40nb mm
HN050
$15.25 each
shipping $12
Two part Hinge
25nb - 50nb mm
HGHM054
$17.95 each
shipping $12
25nb - 50nb mm
HGHM054
$17.95 each
shipping $12
Two part Hinge
25nb - 65nb mm
HGHM058
$15.95
shipping $12
25nb - 65nb mm
HGHM058
$15.95
shipping $12
Two part Hinge
25nb - 80nb mm
HN062
shipping $12
25nb - 80nb mm
HN062
shipping $12
Two part Hinge
25nb - 100nb mm
HN068
shipping $12
25nb - 100nb mm
HN068
shipping $12
To make this round pipe
self closing work you need..
2 Items. Spring closer and 2 Piece hinges
Spring Closer
plus 2 x any Two of the same pipe hinge
One for the top to hold the gate as it swings and the other for the bottom to house the spring closer
self closing work you need..
2 Items. Spring closer and 2 Piece hinges
Spring Closer
plus 2 x any Two of the same pipe hinge
One for the top to hold the gate as it swings and the other for the bottom to house the spring closer
NOTE......
This Self Closing hinge for round pipe
only works in 25NB light pipe
25NB = is the inside measurement of the pipe the wall thickness of the pipe might vary between 1 - 5mm these self closing hinge will accommodate them
This Self Closing hinge for round pipe
only works in 25NB light pipe
25NB = is the inside measurement of the pipe the wall thickness of the pipe might vary between 1 - 5mm these self closing hinge will accommodate them
In this image we are using 50NB mm post to 25NB mm gate
NB stands for Nominal Bore (internal diameter of a pipe/fitting)
Round pipe is mainly used in the water and gas industry and the inside measurement is important to this industry.
With steel industry all steel is measured on the outside whilst the wall thickness changes it never alters the outside measurement unlike the water and gas industry where the inside measurement stays the same but the wall thickness changes so does the outside measurement. I hope this makes sense.
Round pipe is mainly used in the water and gas industry and the inside measurement is important to this industry.
With steel industry all steel is measured on the outside whilst the wall thickness changes it never alters the outside measurement unlike the water and gas industry where the inside measurement stays the same but the wall thickness changes so does the outside measurement. I hope this makes sense.
The unique UV stabilized self lubricating poly bush makes for a smooth long life gate operation. The bush eliminates the metal to metal contact between the gate frame and the gudgeon, minimizing friction, and its ribbed exterior on the bush provides a positive non-slip fit inside the gate frame stile to ensure the only movement is between the gudgeon pin and the hinge bush.
25mm
50mm
25mm
40mm
25mm
Self Closing hinges for Round Post
upto - 25 Kgs
upto - 25 Kgs
Post
48-50
and 73mm
48-50
and 73mm
Gate
35mm and 41mm
35mm and 41mm
The TCHDRND1-MK2 model fits POST 48-50mm, 60mm and 70mm post diameters, and GATE frames of 35mm and 41mm.
All Hinges can be used on Left or Right side
All Hinges can be used on Left or Right side
Self Closing hinges for Round Post -
Post 48-50 & 73 -
Gate 35 and 41mm
upto - 60 Kgs
Post 48-50 & 73 -
Gate 35 and 41mm
upto - 60 Kgs

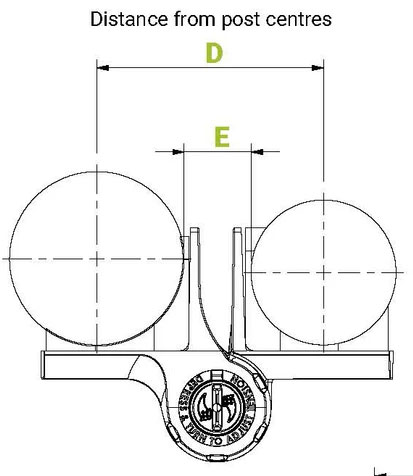

Gate Diameter |
Post Diameter |
D |
E |
35mm |
48-51mm |
67mm |
24mm |
35mm |
60mm |
72mm |
24mm |
35mm |
73mm |
78mm |
24mm |
41mm |
48-51mm |
70mm |
24mm |
41mm |
60mm |
75mm |
24mm |
41mm |
73mm |
81mm |
24mm |
Fits to diameters: TCHDRND1S3: Gate frame: 35 & 41mm, Post: 48-51, 60 & 73mm
These polymer hinges were devised to overcome all the problems associated with conventional gate hinges – rust, binding, sagging and staining. The TruClose ROUND hinges are designed for round-posted heavy or high-traffic gates weighing up to 60kg. The engineering-grade polymers and a stainless-steel closing spring deliver hinges designed to last a lifetime. Due to a high degree of safety and reliability, TruClose hinges are ideal for child safety gates around swimming pools*, childcare centres, schools, homes, playgrounds and hotels/resorts. TruClose hinges are quick and easy to install and to adjust for self-closing speed.

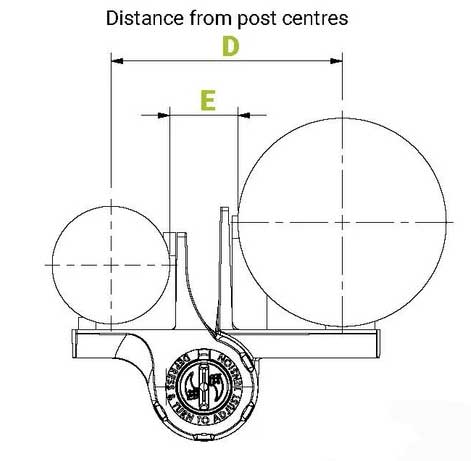

Gate Diameter |
Post Diameter |
D |
E |
48-51mm |
48-51mm |
75mm |
24mm |
48-51mm |
60mm |
80mm |
24mm |
48-51mm |
73mm |
86mm |
24mm |
TCHDRND2S3: Gate frame: 48-51mm, Post: 48-51 & 73mm

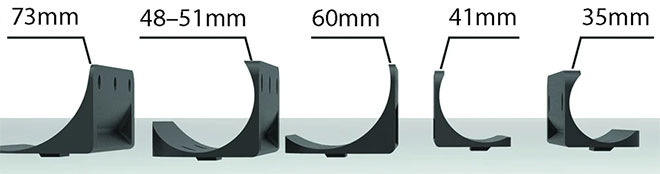

These Adapters come with each hinge pack

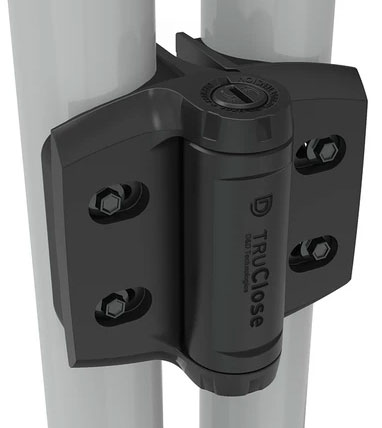

Self-Closing Hinges for Round Posts
NEW: Easier tension adjustment from both ends
NEW: 20% stronger – self-close gates up to 70kg (154 lb)
NEW: Updated, stylish Series 3 body design
• Includes adaptors to fit most post and gate diameters
• Right- or left-handed gate-swing installation
• Side-fixing legs for fast alignment and extra fixing strength
• Industrial-strength polymer will not rust, bind, sag or stain
• Internal stainless steel springs and components
• All fasteners included
NEW: Easier tension adjustment from both ends
NEW: 20% stronger – self-close gates up to 70kg (154 lb)
NEW: Updated, stylish Series 3 body design
• Includes adaptors to fit most post and gate diameters
• Right- or left-handed gate-swing installation
• Side-fixing legs for fast alignment and extra fixing strength
• Industrial-strength polymer will not rust, bind, sag or stain
• Internal stainless steel springs and components
• All fasteners included
Self Closing Hinges for Round Post
Round Post Self Closing hinges upto 70kg
